HOWO Tipper / Dump Truck

Brand : Dongfeng, Chacman, FAW, etc.

Delivery Time : 35 Days

Place of Origin : CHINA

Brand Name : CLW

Tire Design : Tubeless

Name : Tipper Dump Truck

Condition : New

Transport Package : Naked, Waxed, Bulk Ship, RO-RO

MOQ : 1

Price : 15000-35000 per unit

Load Capacity : 31-40t

Warrenty : 1 Year

Drive Wheel : 6×4

Model NO. : CLW6688ZXCA06

Horsepower : 351-450hp

Trademark : CLW

Thickness of The Box : Side 8mm, Bottom 10mm

Specification : 8860x2496x3450mm

Usage : Transpotations of Mineral, Stone, Sand, and So on.

Origin : Suizhou, China

Production Capacity : 500pieces/Month

Lifting Type : Middle Lifting, Front Lifting

Model Number : CLW

Payment Terms : 50% Deposit,Balance should be paid before ship out

Supply Ability : 10unit per month

Oil Cylinder Brand : International Brand Hyva or Chinese Brand

Engine Capacity : ＞8L

Color : as Customer's Request

Seats : ≤5

Dump Material : High Quality Q345b

Emission Standard : Euro 2

Dumping Type : Front Lifting Style

Tire Certification : ECE, GCC, ISO, DOT

HS Code : 8705909090

Contact Now

China Sinotruck HOWO 40t Front Tipping Mining Construction Transportation dumping tipper mining truck

Product description:

Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, FOTON, etc.
Tipping Model: Front-tipping, Middle-tipping.
Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
High tensile steel for dumper materia: 4mm, 6mm, 8mm,10mm or as per customer's request.
Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.
Specification of dump truck:

Cabin		HOWO 76 Standard Cab With one sleeper, 70° hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	(L x W x H) mm			8860×2496×3450
	Wheel base (mm)			3825+1350
	Wheel track (front/rear) (mm)			1500/1525
	Approach/Departure angle(°)			19/24
Weight in KGS	Tare Weight				12390kg
	Loading Capacity				40000kg
	Front axles loading capacity				HR9 1x9000kg
	Rear axles loading capacity				HC16 2x16000kg
Max. driving speed(km/h)						85
Engine			Brand				Sinotruk Howo
			Model				WD615.47
			Type				4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
			Horse Power(HP)				371HP
			Emission standard				Euro 2
Gearbox			HW19710, 10 forwards & 2 reverse
Clutch			Reinforced diaphragm clutch, diameter 430mm
Steering Gear			ZF 8118, power steering, hydraulic steering with power assistance
Fuel tank (L)			300
Tire			12R22.5 tubeless tire,10 pieces with one spare
Brakes			Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake

Product Tags:

Sinotruck HOWO Tipper Dump Truck

40t Tipper Dump Truck

31t Tipper Dump Truck

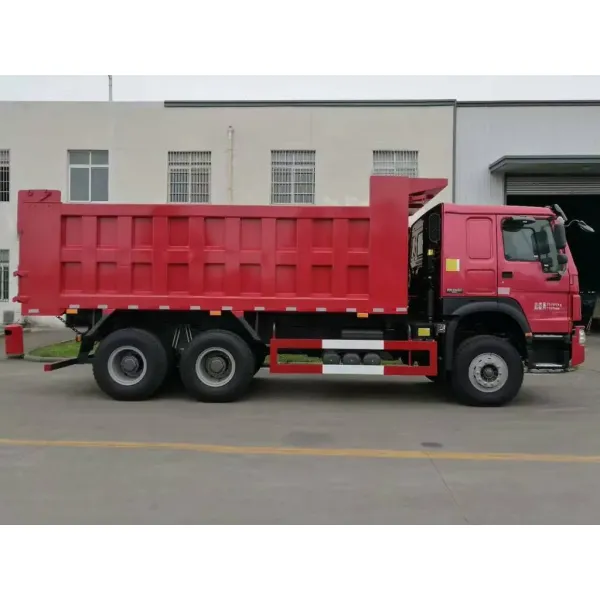

HOWO Tipper / Dump Truck Images
